PiCCO Trouble Shooting Guide | For PulsioFlex with PiCCO module

Arterial blood pressure signal

Pressure curve error [3/5]

not displayed, flat, noisy or no dicrotic notch detection

!

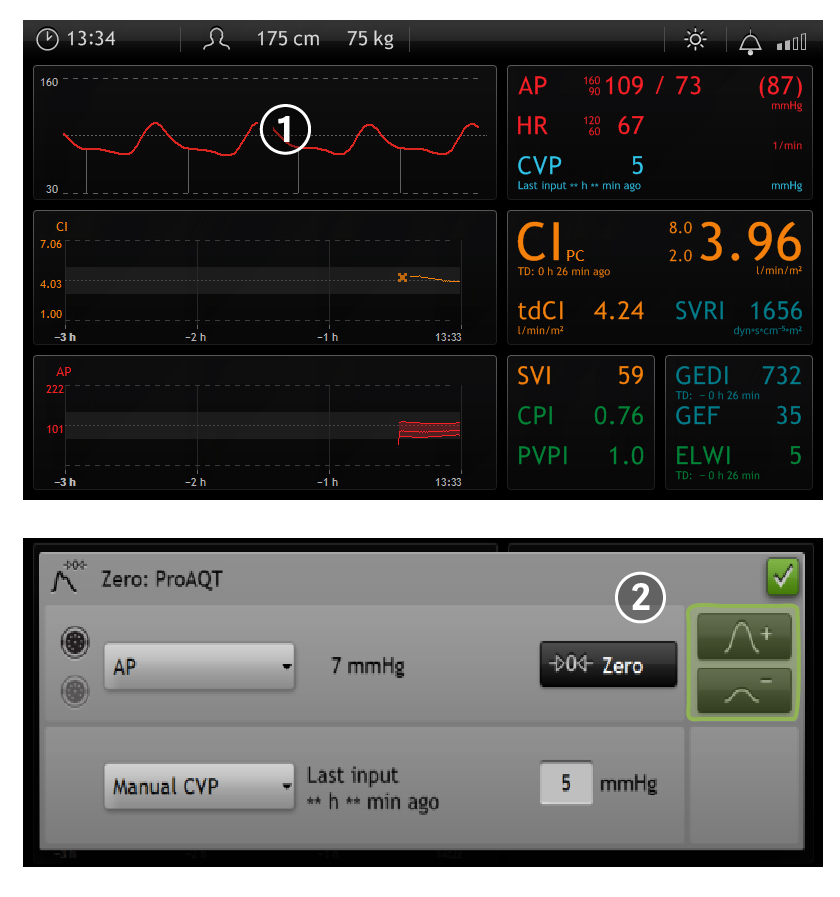

Check pressure curve scaling and possibly adjust

1

Touch the pressure curve

2

Optimize the pressure curve display by the curve +/- scaling buttons
