Maquet Yuno II Mobile OR Table

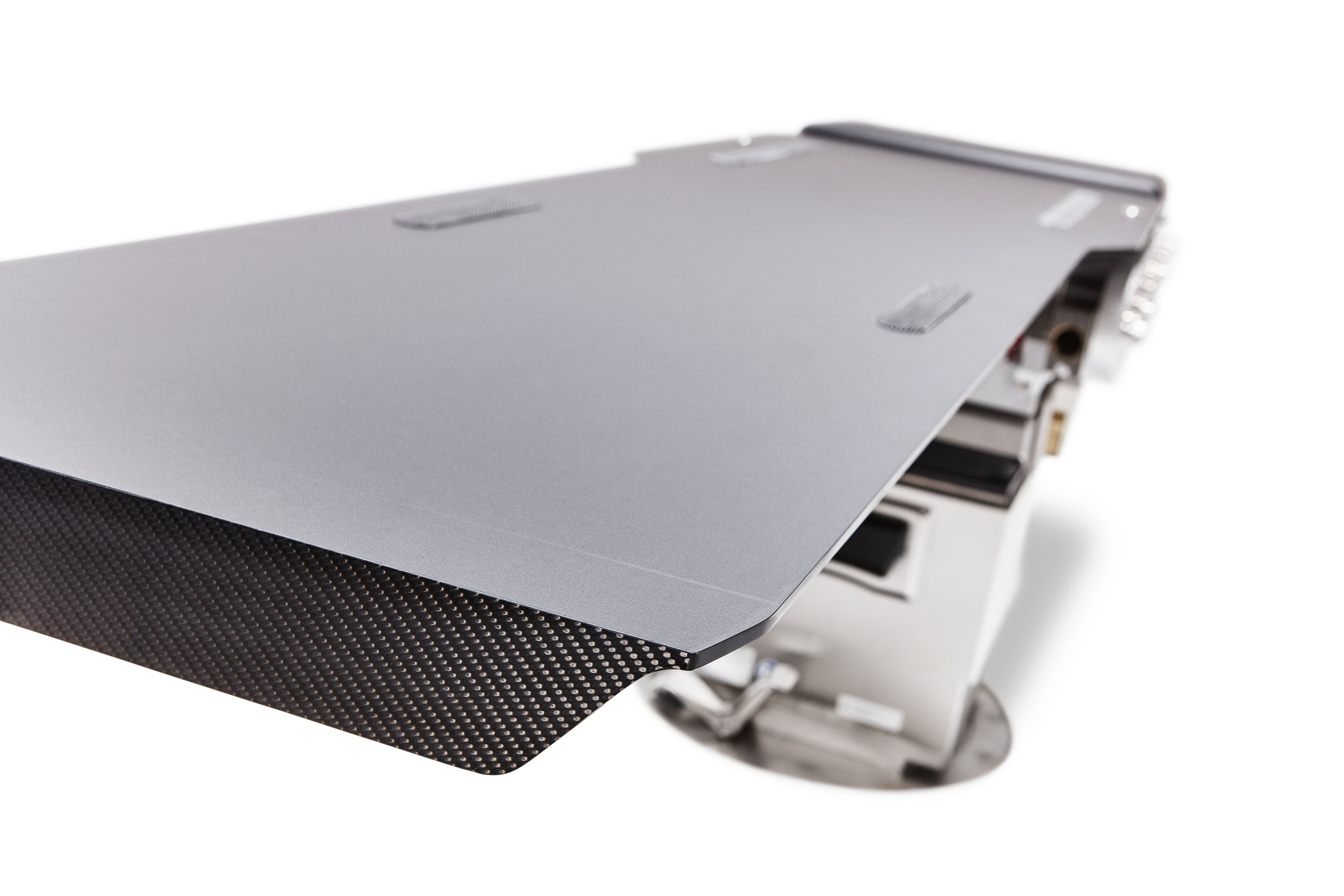

Intraoperative imaging can improve outcomes for patients, giving surgeons clear insights during the procedure. But imaging technologies require specialized infrastructure to support precise visualization. That’s why Getinge has developed a carbon fiber (CF) plate to provide unrestricted radiolucency for pelvic, cardiovascular, orthopedic, and traumatology procedures.

The CF plate has interdisciplinary functionality, expanding the capabilities of your surgical suite. With an X-ray range of up to 1,200 mm, the C-arm can be positioned to create an imaging window at nearly every angle.

The ball joint is moveable in all directions, supporting DAA procedures and enabling advanced MIS techniques. The slider makes it easy to establish traction, saving time and improving efficiency.

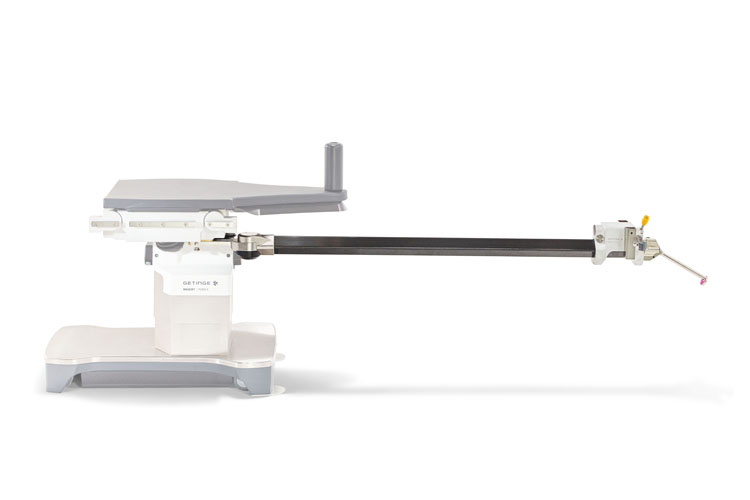

The radiolucent carbon fiber traction bar gives better quality images for improved diagnostics and better patient safety. The slider glides easily over the bar for simple traction setup, saving time and minimizing physical strain.

The star-shaped handle of the screw tension device can be easily and precisely operated with just one hand.  It is equipped with a degree indicator that enables fine tractions to ensure the precise positioning needed for optimal outcomes. It can be attached to the traction devices of Maquet Yuno II and it is also compatible with our existing extension sets.

The sliding clamp can be easily moved along the carbon fiber traction bars for precise positioning of accessories where they’re most needed. It attaches to both bars, allowing you to deploy additional accessories during surgery.

The support plate supports the non-operative leg during surgery, improving patient comfort and preventing overstretching of the knee.  It can be attached to the sliding clamp for flexible positioning anywhere along the traction bars.

Leg plates offer additional support during induction, keeping even the tallest patients safe and comfortable.

The trolley for traction bars is designed to roll close to the table, minimizing the need to carry the bars. It improves workplace ergonomics and reduces the risk of injury.

The accessory trolley can accommodate many accessories in a small space, while still providing fast and ergonomic access. Even when fully loaded, it is very easy to maneuver.

The adapter for counter-traction post to femur allows our existing counter-traction posts to be used on the Maquet Yuno II table to maximize the ROI of your OR table investment and minimize implementation costs.

The traction frame gives surgeons the flexibility to position the patient in prone or side positions for pelvic surgery to improve working conditions and deliver the best possible results for the patient.

The elongation adapter enables the use of the screw tension device for tall patients, eliminating the need for scrub nurses to pull the leg manually. This frees staff resources for more important tasks, and improves patient safety.

The vertical adjustment positions the leg higher for improved site access and patient safety. Two lengths are available to meet specific patient needs and to increase the variety of positioning options.

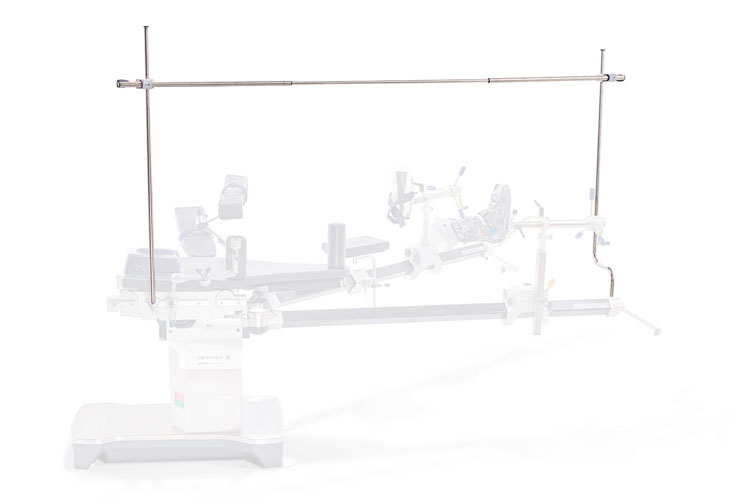

Securely attach the drape to fixed attachments for quick and easy setup. This frame is recommended if only one sterile drape is used for femur fractures.

Easily mount our existing tibia and fibula extensions to Maquet Yuno II with the tibia adapter.

Improve access to pelvis with variable positioning options of the countertraction post. 360° radiolucency provides excellent imaging quality.

The smart design of the extension plate with one hole improves access to hip.  360° radiolucency improve intraoperative imaging.

The longest and strongest bone in the body, the femur, requires a tremendous amount of force to set fractures. Ergonomic positioning for the surgeon and accessibility of intraoperative imaging are of equal importance for a successful patient outcome. With Maquet Yuno II, surgical teams can easily position the table in the ideal configuration for both surgeon and patient. The smart design of the carbon fiber traction bars reduces the complexity of femur set ups and improves the surgical workflow.

• Highest table settings on the market improve ergonomics for the surgeon
• Carbon fiber bars improve intraoperative imaging
• The smart design of the carbon fiber traction bars reduces the complexity of femur set ups

Traumatic pelvic fractures often cause extensive bleeding and organ injuries that require urgent treatment and clear intraoperative imaging. Maquet Yuno II can reduce the time to treatment, a critical factor in survival rates for traumatic pelvic injuries.

• Quick set up to reduce the time to treatment
• Flexible prone, supine and lateral positioning to meet surgeons’ preferences
• Carbon fiber devices enhance imaging quality

Neurosurgeons require the utmost stability as they work with delicate nerve structures. Maquet Yuno II incorporates several important safety features to prevent accidental table movements.

• Cast iron three-point stand provides excellent stability
• Lock functions eliminate accidental table movements
• Flexibility to set up a variety of neurosurgical positions
